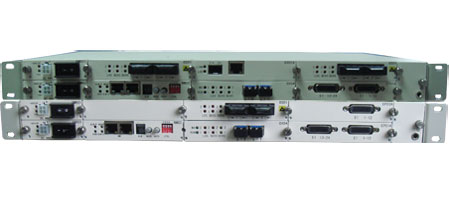

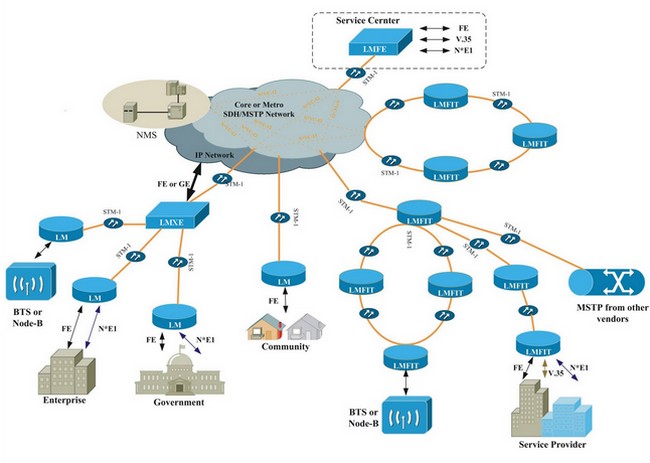

DHODT-LMFE is a carrier-class, cost-effective, compact (only 1U high), STM-1/STM-4/STM-16 SDH/MSPP platform that is designed for application in metro and access networks to facilitate the efficient transport of traditional TDM and emerging data traffic for service providers.
DHODT-LMFE is a card based compact SDH equipment, designed mainly as a gateway node between the core SDH network and a number of remote CPE boxes. It may also be used as a multi service SDH ADM node in a typical ring or mesh network. The 1U high 19" wide chassis of the DHODT-LMFE has 8 slots, with 2 slots for the DC(1+1)/AC power supply, 1 slot for network management card, 1 slots for STM-1/STM-4/STM-16 uplink, and 4 slots left for services (STM-1, Ethernet, E1, E3/DS3,V.35 Etc.).
|
|
|
*Support up to STM-16 rate SDH service
*Support 1+1 MSP, SNCP protection
*Ethernet service supporting GFP encapsulation, VC12 virtual concatenation (1~63 VC12) and LCAS
*Management channel can be DCC bytes or E1 (VC12)
*Inter-working with popular SDH/MSPP products of various vendors
*Easy commissioning and maintenance
*High integration, compact design
*High reliability, low CAPEX and OPEX
|
|
|
General
|
Network topology
|
Star, line, ring
|
|
Card number
|
1 pc aggregation card, 4 pcs tributary cards, 1 pc network management card, 2 pcs power supply cards.
|
|
Cross connection capacity:
|
Aggregation:
STM-4: granularity at VC12, VC3 & VC4 level full cross of 16 STM-1 capacity; STM-1: granularity at VC4 level and its sub-container full cross of 10 STM-1 capacity.
Tributary:
Uplink: High order: VC3 & VC4 to aggregation card full cross of 2 VC4 capacity;
Low order: VC12 to aggregation card full cross of 2 VC-4 capacity;
Downlink: High order: VC3 & VC4 to aggregation card full cross of 2 VC4 capacity;
Low order: VC12 to aggregation card full cross of 2 VC-4 capacity;
|
|
Cross connection direction:
|
Group to tributary, tributary to group, group to group, tributary to tributary.
|
|
Cross connection type:
|
Single direction, dual direction, multicast/broadcast, loop back
|
|
Optical protection:
|
VC-12, VC-3, VC-4 support SNCP, protection time is less than 50ms, line multiplex segment 1+1 protection. STM-1dual fiber single direction multiplex segment protection.
|
|
Power supply redundancy:
|
Multiple redundancy protection, dual -48 power supply, two independent PWR card.
|
|
Built-in network management channel:
|
Standard DCC channel or VC-12, E1 channel, Ethernet channel and EOE Ethernet in-band management channel
|
|
Inner function:
|
Bult-in TUPP and cross connection function, standard SDH equipment clock units in aggregation card. Built-in E1 ber test unit in aggregation and tributary unit.
|
|
Optical direction
|
2 channels of uplink STM-1, full load 8 STM-1 optical tributary channels.
|
|
Tributary service:
|
12 or 24 channels of E1, 1 or 3 channels of E3/DS3, 1000M/100M/10M Ethernet electrical or optical service, 2 channels of V.35
|
STM-1 Optical/Electrical Port
|
Bit rate:
|
155520kbit/s ± 4.6ppm
|
|
Line code:
|
Scrambled NRZ
|
|
Wavelength:
|
Default:
|
1310nm
|
Option /5:
|
1550nm
|
|
Output power:
|
Default:
|
Min: –12 dBm
|
Option /L:
|
Min: -5dBm
|
|
|
Option /S:
|
Min: –14 dBm
|
Option /SL:
|
Min: -5dBm
|
|
Sensitivity:
|
Default:
|
-36dBm
|
Option /S:
|
-30dBm
|
|
Connector:
|
Optical:
|
Default:
|
SC dual fiber dual directions
|
|
Option/S:
|
SC single fiber dual directions
|
|
Electrical:
|
CC4
|
STM-4 Optical Port
|
Bit rate:
|
622080kbit/s ± 4.6ppm
|
|
Line code:
|
Scrambled NRZ
|
|
Wavelength:
|
Default:
|
1310nm
|
Optional/5:
|
1550 nm
|
|
Output power:
|
Default:
|
Min: –12 dBm
|
|
|
|
Sensitivity:
|
Default:
|
-28dBm
|
|
|
|
Connector:
|
Default:
|
LC dual-fiber dual-direction transimission
|
|
|
STM-16 Optical Port
|
Bit rate:
|
2488320kbit/s ± 4.6ppm
|
|
Line code:
|
Scrambled NRZ
|
|
Wavelength:
|
I-16:1310nm
|
S-16.1:1310nm
|
L-16.1:1310nm
|
L-16.2:1550nm
|
|
Output power:
|
I-16:
|
S-16. 1:
|
L-16.1:
|
L-16.2:
|
|
|
-10~-3 dBm
|
-5~0 dBm
|
-2~+3dBm
|
-2~+3dBm
|
|
Sensitivity:
|
I-16: <-18dBm
|
S-16: <-18dBm
|
L-16.1: <-27dBm
|
L-16.2: <-28dBm
|
|
Connector:
|
Optical:
|
Default:
|
LC dual fiber dual directions
|
|
Option/S:
|
LC single fiber dual directions
|
E1 port
|
Bite rate:
|
2.048 Mbps ± 50 ppm
|
|
Line code:
|
HDB3
|
|
Impedance:
|
75ohm unbalanced /120ohm balanced
|
|
Frame:
|
Unframed
|
|
Connector:
|
RJ45 or DMS-60
|
|
E1 number:
|
12 or 24
|
E3/DS3 port
|
Bite rate:
|
E3: 34.368 Mbps ± 15ppm; DS3:44. 736 Mbps ± 15ppm
|
|
Line code:
|
HDB3
|
|
Impedance:
|
75ohm unbalanced
|
|
Frame:
|
Unframed
|
|
Connector:
|
CC4
|
|
E3 number:
|
1
|
Ethernet port
|
Bite rate:
|
2M~100M
|
|
Work mode:
|
Ethernet Tx port: auto-negotiation, manual 100M full-duplex.
Ethernet Fx port: auto-negotiation, manual 100M full-duplex.
|
|
Connector:
|
Ethernet Tx port: RJ45
Ethernet Fx port: LC
|
|
Support:
|
VCAT, GFP, LCAS
|
|
Frame length:
|
Mini frame length 64 byte, Max frame length 1518
|
|
Transmission way:
|
EoS, EoE
|
|
Channel number:
|
1～4
|
|
Port number:
|
1～4
|
V.35 port
|
Bite rate:
|
Nx64kbps ± 50 ppm,N£31 or 2048 kbps
|
|
Frame:
|
Framed E1 or unframed
|
|
Interface mode:
|
DCE or DTE
|
|
Interface number:
|
2
|
|
Connector:
|
DB25
|
Clock Port
|
Clock resource:
|
Inner clock, STM-1 line clock, external input clock, tributary clock
|
|
External clock input:
|
One 2048kbit/s or 2048kHz external clock, 75ohm unbalanced coaxial socket or 120ohm balanced RJ45 socket
|
|
Clock output:
|
One 2048kbit/s or 2048kHz clock, 75ohm unbalanced coaxial socket or 120ohm balanced RJ45 socket
|
|
Connector:
|
LA01card CC4 or RJ45 socket
|
Management Port
|
Ethernet Q interface:
|
2 RJ45 port, SNMP, 10/100Base-T Etherent MDI port
|
|
F interface (RS232):
|
Baud rate :9600, 8 digital bits, 1 stop bit, no checkout, no flowcontrol
|
OW/Overhead port
|
Wire-order port:
|
RJ11, support dual tone frequency dialing
|
|
Asynchronous RS232 port
|
DB9, V.11 electrical interface
|
Mechanical/Electrical
|
Dimension:
|
44mm x 280mm x 440mm (H/D/W)
|
|
Net weight:
|
3.5kg
|
|
Power:
|
-48 V (-36V ~ -72V)
|
|
Consumption:
|
≤ 40W
|
|
Working temp:
|
0 ~ 45°C
|
|
Humidity:
|
0-90%RH (Non-condensing)
|
Reference Standards
|
Item
|
Reference standard
|
|
STM-1、STM-4 SDH optical port:
|
G.957, frame structure G.707
|
|
E1/E3/DS3 port:
|
G.703,G.704
|
|
Ethernet port:
|
IEEE 802.3 relevant
|
|
2Mbit/s、2Mhz clock port:
|
G.823
|
|
SDH clock:
|
G.813, G.825, Ministry of Posts and Telecommunication: YDN121-1999, YDN123-1999
|
|
Network structure:
|
G.783, G.798, G.803, G.805
|
|
Monitor and management:
|
G.784, G.831, Q.811, Q.812, M.3100, M.3000, Ministry of Posts and Telecommunication: YDN037-1997, YDN045-1997, YD5080-99
|
|
Service protection:
|
G.841, G.842, Ministry of Posts and Telecommunication: YDN028-1997
|
|
Built-in E1 Ber test:
|
O.150
|
|
|
|
|
|
|
